Multifunctional Counting Packaging Machine With 32 Head Weigher for mixing food

Multifunctional Counting Packaging Machine With 32 Head Weigher for mixing food

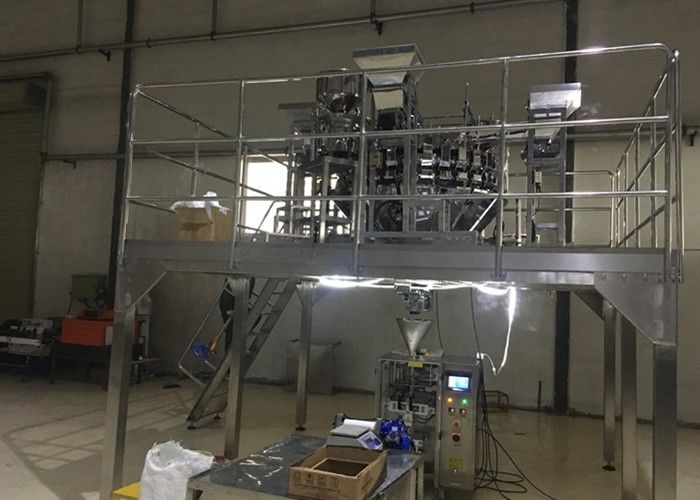

System including:

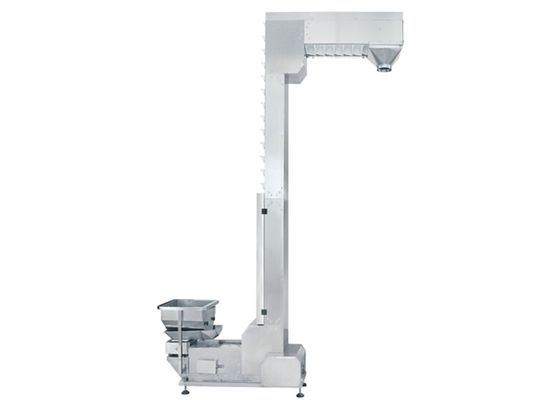

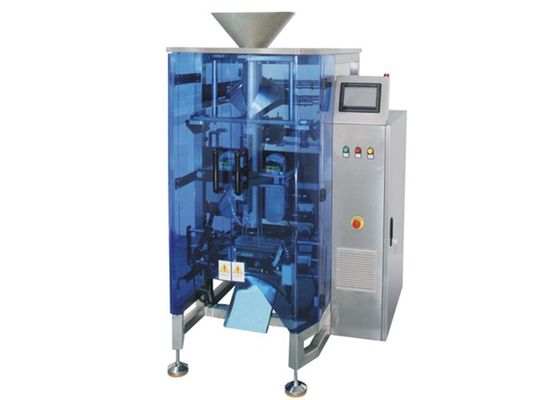

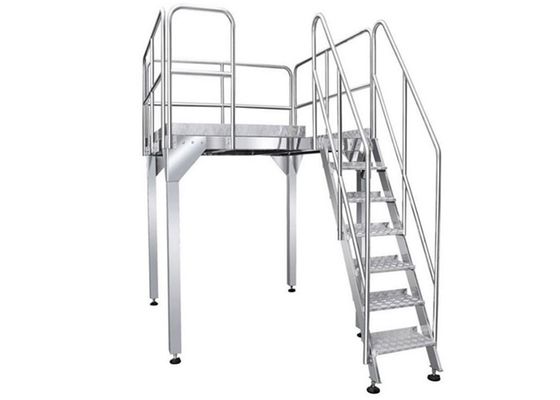

32 head weigher,counting vibration rotary feeder,working platform,(Optional:material feeding conveyor,packaging machine,desiccant feeder)

Mechanical character





Mixing Weighing Configuration


FIG. A: 4 kinds of mixture weighing + 3 kinds of materials (total weighing accuracy ±1.5g)
The distribution hoppers of 32 scales for 4 kinds of materials were 7 (± 2G), 7 (± 2G), 7 (± 2G) and 8 (±1.5g). 8 hoppers are used as the main materials for the main materials to automatically compensate the weighing accuracy errors of other formulas and ensure the total weight accuracy within ±1.5g. The other three materials were distributed in 7 hoppers with an accuracy of ± 2G. The weighing precision of formula is well controlled.
The distribution hoppers of 32 scales with 3 pieces of material are 1 hopper (±0), 1 hopper (±0) and 1 hopper (±0). Each material is assigned to a hopper and is fed by counting vibration rotating feeder with high precision (weight accuracy is not considered).

Figure B: Mixed weighing of 3 kinds of materials + counting slices of 4 kinds of materials (total weighing accuracy ±1g)
There are 10 hoppers (±1g), 10 hoppers (±1g) and 8 hoppers (±1.5g) for the distribution of 32 scales of 3 kinds of materials. 10 hoppers are used as the main material to automatically compensate the weighing accuracy errors of other formulas and ensure the total weight accuracy within ±1g. In addition, there are 10 hoppers with the distribution accuracy of ±1g and 8 hoppers with the distribution accuracy of ±1.5g.
The distribution hoppers of 32 scales with 4 pieces of material are 1 hopper (±0), 1 hopper (±0), 1 hopper (±0) and 1 hopper (±0). Each material is assigned to a hopper and is fed by counting vibration rotating feeder with high precision (weight accuracy is not considered).

Illustration C: high-precision mixing weighing of 3 kinds of materials + high-precision mixing weighing of 4 kinds of materials (total weighing precision ±1g)
There are 10 hoppers (±1g), 10 hoppers (±1g) and 8 hoppers (±1.5g) used for high-precision mixing weighing of 3 kinds of materials. 10 hoppers are used as the main material to automatically compensate the weighing accuracy errors of other formulas and ensure the total weight accuracy within ±1g. In addition, there are 10 hoppers with the distribution accuracy of ±1g and 8 hoppers with the distribution accuracy of ±1.5g.

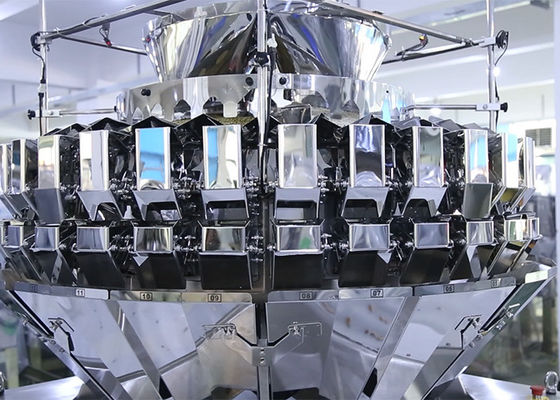

Kenwei independently researched and developed both standard and high amplitude vibrators. The vibration time and vibration amplitude of each vibrator can be automatically adjusted to optimize the material flow. Multi-head weigher central chassis is made from 2.5mm thickness stainless plate and strengthened structurally with internal strengthening rib. The AD conversion module combines technical modification with anti-interference technology to effectively minimize various vibration interference and ensure the accuracy of the whole machine.

Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world. We have successively won the “Guangdong Industry-University-Research Science and Technology Project Award”, “high technology enterprise” , “Technology Innovation Award” in Chinese food processing and packaging industry, Ringier Multihead Combination Weighing Technology Innovation Award, a number of “Utility Model Patent Certificate” and many other honorary certificates.

Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.

Products have passed CE certificate, PA / MC certificate, OIML certificate, and GSG enterprise qualification certificate, widely used in food, medicine, chemical, hardware, commodity fields. We reached strategic cooperation with customers from more than 100 countries and regions around the world, and we will continue to create more economic benefits for our customers.
